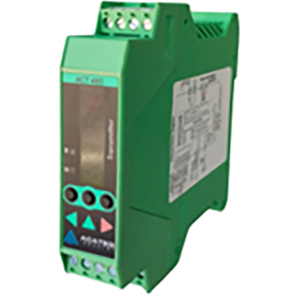

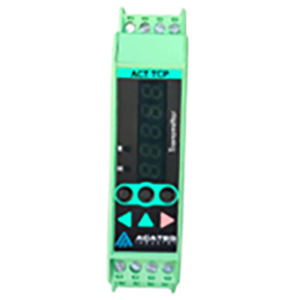

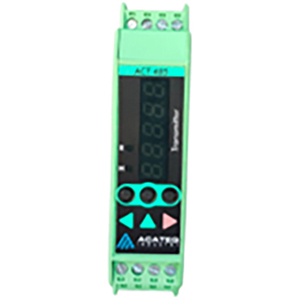

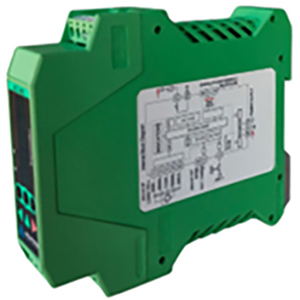

TRANSMITTER
Modbus/Analog and TCP options are available.
To download the Acateq Transmitter Brochure, please click here.
Automation Systems

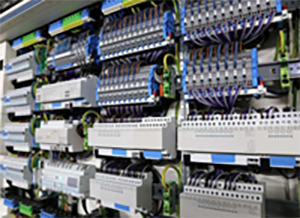

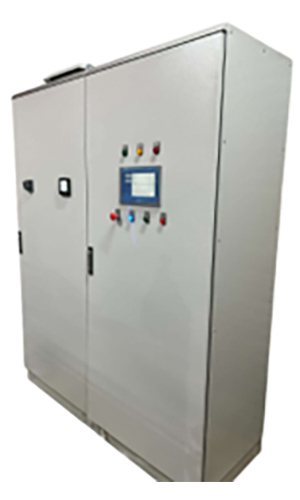

ELECTRICAL PANEL
The panel ensures efficient energy use, reduces manual operation, and allows remote monitoring and control.
FUNCTIONS
- Automatic start/stop control for
- Monitoring via level, pressure, and temperature sensors
- Timer-controlled mixing cycles
- Manual / Automatic mode selection
- Emergency stop function
- Fault and alarm indication (LED + buzzer)
TECHNICAL SPECIFICATIONS
Parameter Specification
- Power Supply 3 Phase, 400V AC, 50 Hz
- Control Voltage 24V DC
- Protection Class IP54 (IP65 optional)
- Power Range 5 – 30 kW (customizable)
- Operating Temperature -10°C to +50°C
Safety Features
- Thermal and magnetic protection
- Phase sequence and undervoltage protection
- Emergency stop button
- Overcurrent / short-circuit protection
- Door interlock safety switch
